Chemical Etching Machine and Process: A Comprehensive Guide

Introduction

Chemical etching is a precise manufacturing technique used across various industries to produce intricate designs and components. This process involves using chemical solutions to selectively remove material from a substrate, typically metals, to create detailed patterns and shapes. In this guide, we will delve into the double-side spray precision etching machine and the chemical etching process, highlighting how this advanced equipment enhances the etching process.

What is a Double-Side Spray Precision Etching Machine?

A double-side spray precision etching machine is a specialized piece of equipment designed to perform high-precision chemical etching on both sides of a substrate simultaneously. This advanced machine ensures even and accurate etching by using spray nozzles to apply etching solutions. Key features of a double-side spray precision etching machine include:

  • Dual-Side Spray System: Equipped with spray nozzles on both sides of the machine, allowing for simultaneous etching of both surfaces of the substrate.
  • Substrate Holder: A mechanism to securely hold and position the substrate, ensuring precise alignment and uniform etching.
  • Chemical Dispensing System: Advanced system for accurately mixing and dispensing etching chemicals to maintain consistent concentration and effectiveness.
  • Control Panel: Interface for setting and monitoring critical process parameters such as spray pressure, solution temperature, and etching time.
  • Cleaning and Rinsing Units: Integrated systems for cleaning and rinsing the substrate after etching to remove residual chemicals and photoresist.

The Chemical Etching Process

The chemical etching process with a double-side spray precision etching machine involves several key stages:

1. Design and Masking

  • Design Creation: Create the desired pattern or shape using CAD (Computer-Aided Design) software. Transfer this design to a photomask, which will act as a stencil for the etching process.
  • Mask Application: Coat the substrate with a photoresist material, which protects certain areas during the etching process. The photoresist is sensitive to light and will harden when exposed.
photosensitive ink coating machine
photosensitive ink coating machine

2. Exposure and Development

  • Exposure: Place the photomask over the photoresist-coated substrate and expose it to UV (Ultraviolet) light. The light hardens the photoresist in the exposed areas, while the areas shielded by the mask remain soft.
double side LED exposure machine
double side LED exposure machine
  • Development: Remove the unexposed, soft photoresist to leave behind a hardened pattern that defines the areas to be etched.
photoresist developing machine
photoresist developing machine

3. Etching

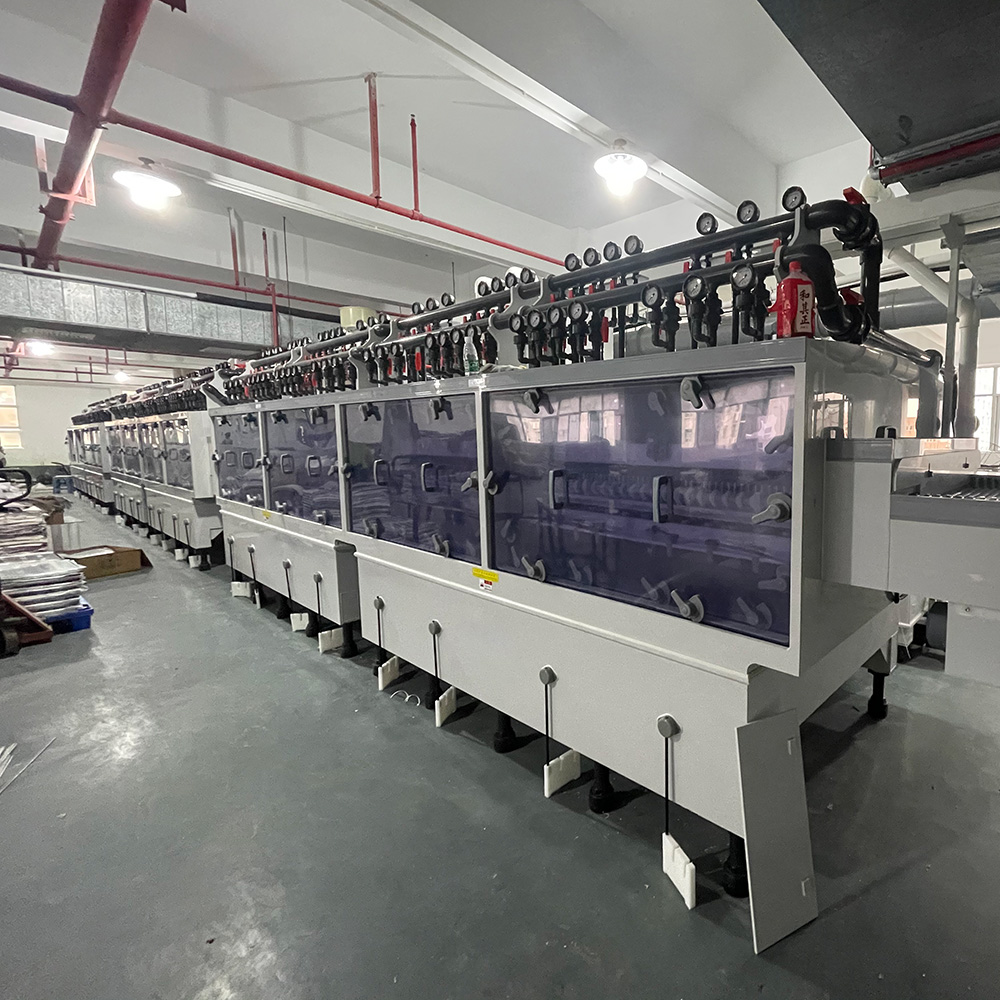

  • Spray Application: The substrate is placed in the double-side spray precision etching machine, where etching solutions are sprayed onto both sides of the substrate. This ensures even etching and accurate replication of the design.
  • Control Parameters: Adjust settings such as spray pressure, temperature, and solution concentration to achieve optimal etching results and maintain uniformity across the substrate.
chemical etching machine
chemical etching machine

4. Cleaning and Finishing

  • Cleaning: After etching, the substrate is removed from the machine and cleaned to remove any residual photoresist and chemicals.
  • Finishing: Perform additional finishing steps, such as polishing or coating, to achieve the desired final appearance and performance of the etched part.

Advantages of Using a Double-Side Spray Precision Etching Machine

  • High Precision: Ensures detailed and accurate etching on both sides of the substrate with tight tolerances.
  • Efficient Production: Simultaneous etching of both surfaces enhances production efficiency and reduces processing time.
  • Uniform Etching: Consistent application of etching solutions results in uniform etching across the entire substrate.
  • Versatility: Suitable for a variety of materials, including metals, plastics, and ceramics.

Applications of Chemical Etching

The double-side spray precision etching machine is used in numerous industries and applications, including:

Conclusion

The double-side spray precision etching machine represents an advanced solution in the chemical etching process, offering high precision and efficiency for complex designs. By understanding the capabilities of this machine and the overall etching process, you can better appreciate its advantages and applications in various industries. For more information or to explore how chemical etching can benefit your project, contact us today!
