Precision chemical etching for metal parts — prototypes to production

Burr-free, heat-free parts made from your drawing. No hard tooling, so the first sample and the thousandth part come off the same process.

  • 0.01 – 5.0 mmMaterial thickness
  • ±0.01 mmTolerance, by thickness & size
  • 1500 × 3000Max sheet, mm
  • 3 – 7 daysSample lead time
Get Feasibility & Quote → See capabilities

DXF, DWG, STEP or PDF. Manufacturability checked before quoting. Drawings treated as confidential.

  • CE Certified
  • Since 2003 · Beijing
  • In-house etching lines
  • No tooling cost

What is Chemical Etching?

Chemical etching, also called photochemical machining, photo etching or chemical milling, dissolves metal through a photoresist mask instead of cutting it. Golden Eagle has etched stainless steel, copper, brass, aluminium, titanium and nickel alloys in Beijing since 2003, in thicknesses from 0.01 mm to 5.0 mm and sheets up to 1500 × 3000 mm, holding tolerances to ±0.01 mm depending on material thickness and part size. Parts come out burr-free, flat and free of heat distortion, for aerospace, electronics, automotive, medical and decorative work. Samples are typically ready in 3 to 7 working days.

Advantages of metal chemical etching service

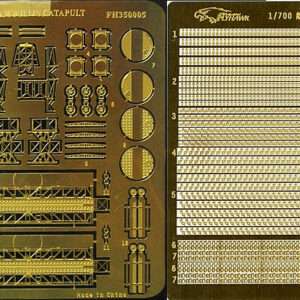

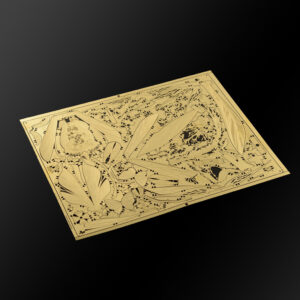

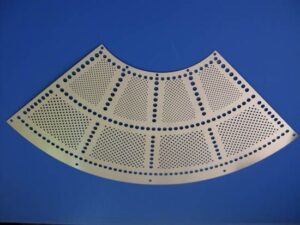

Chemical etching service For any type of object or field of application (Medal, sign, signage, signboard, label, name tag, safety sign,  nameplate, decoration sheet ,press plate, cutting dies, stamping dies, frames for glasses, mesh filters, micro mechanic, musical instruments, railway models, fuel cells, art objects, jewelry, biomedical, etc.

1. High precision and consistency chemical etching service:
① Chemical etching can achieve extremely high processing accuracy, and the error is usually at the micron level.
②This technology can ensure that parts produced in the same batch have similar micropore sizes and shapes, ensuring processing consistency.

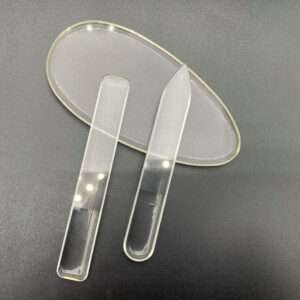

2. Wide range of material applicability: Micropore etching is suitable for a variety of materials, including metals(stainless steel, brass, copper, aluminum, steel, titanium, nickel etc.), semiconductors, ceramics, and glass, providing a wide range of options for applications in different fields.

3. Realization of complex shapes and structures: Etching processing technology can easily realize micropores of various complex shapes and structures, such as square, circular, elliptical, and more complex three-dimensional structures.

4. High efficiency chemical etching service: Etching processing technology is usually very fast, and a large number of micropores can be processed in a short time, greatly improving production efficiency.

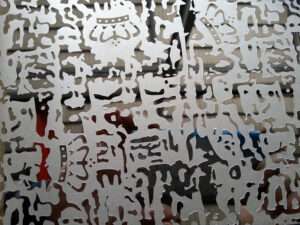

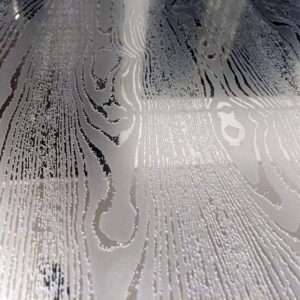

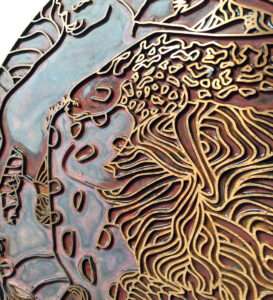

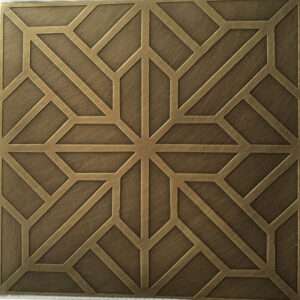

Chemical etching service for different material

Chemical etching by industry

Flexible rotary dies for label converting

Thin steel dies etched to your layout, ready to wrap onto a magnetic cylinder. Cut, kiss-cut, perforation and punch holes are etched in one pass, so a complicated label shape costs no more than a plain rectangle.

Etched flexible rotary die with the paper labels it produced beside it
A die we made, with the labels it cuts.
  • One die, every line. Through cut, kiss cut, perforation, punch holes and scoring, each to its own depth.
  • Shape is free. Ornate contours etch in the same pass as a rectangle.
  • No hard tooling. A layout change needs a new phototool, not a new cutter.
  • Marked on the edge with size and job reference, so it is easy to find on the shelf.
Etched flexible die with ornate decorative label outlinesEtched flexible die with circular labels and serrated perforationClose-up of the raised etched cutting rules on a flexible die
See flexible dies →

Frequently Asked Questions

Answers here !

What can we etch?

The metal materials we can etch include: stainless steel, copper, aluminum, nickel alloy, titanium. Etching thickness :0.01-5mm.

Delivery time?

Sample lead time is typically 3 to 7 working days after the drawing is confirmed. Batch production timing depends on volume and current capacity

Etching tolerance?

Etching accuracy of 0.01mm. Etching thickness: 0.01-5mm. Tolerance can be held to ±0.01mm, depending on material thickness and part size.

How to obtain a quotation?

Please provide drawings (CAD/AI/CDR) and specific material requirements, and we will provide an accurate quotation

Latest Chemical Etching Products

Get In Touch With Us!

Phone / WeChat / WhatsApp

+ 86 15010608128

Email

Address

Room701,B Building,Greenland Group,Xinghua Street,Daxing District,Beijing,China 102627

Send a message

Send your drawing for a quotation

Email the drawing as DXF, DWG, STEP or PDF. We check manufacturability against it and reply with feasibility and a price. Sample lead time is typically 3 to 7 working days. Drawings are treated as confidential.

Email your drawing →WhatsApp

Please include: material and grade · thickness · quantity · finish · required date.
